ALPHA DIC® SOFTWARE
Digital Image Correlation Software for Strain & Deformation Analysis
- Easy Setup and Measurement
- Real-Time & Post-Process Analysis
- Suitable for Lab, Industrial and Field Testing
- Modular & Scalable Platform
Description
ALPHA DIC is a modular digital image correlation software platform for strain, deformation, and displacement analysis. Designed for optical extensometers and DIC systems, it supports laboratory, industrial, and research applications ranging from routine testing to advanced multi-camera measurements.
The software combines real-time measurement, post-processing, and a wide range of engineering tools into a scalable workflow environment. Thanks to its modular architecture, users can configure the system according to specific testing methods, hardware setups, and application requirements — from simple extensometer measurements to advanced full-field DIC analysis.
Measurement Probes

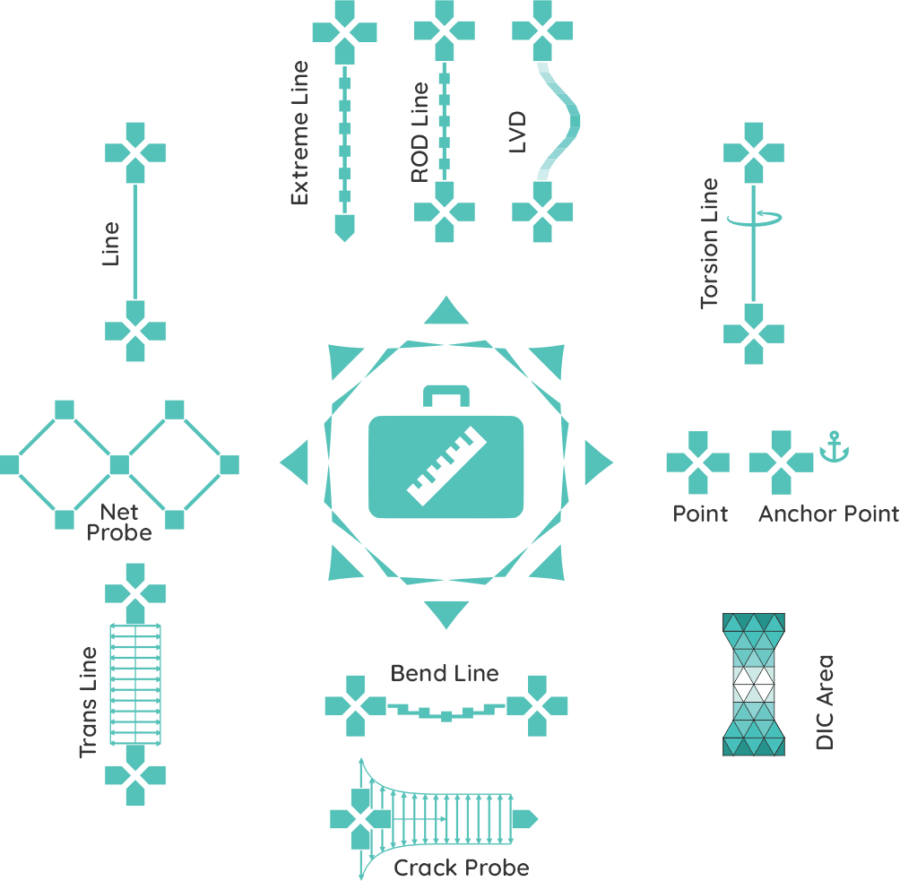

ALPHA DIC offers a wide range of probes and engineering tools for tensile, compression, flexural, torsion, crack propagation, displacement, and full-field DIC analysis.
The software can be configured using dedicated modules and workflows for optical extensometers and DIC systems.
Documents & Downloads
Software Kits
Optical Extensometer Kit
Ready-to-use Alpha DIC software package for optical extensometers and material testing applications.
- Simple software for Axial measurements
- Easily upgradable for transversal, torsion, crack analysis, 3D, post-processing, and DIC
- Operator mode for robust industrial measurements
- Many options for I/O and API communication
DIC Measurement Software kit
Advanced Alpha DIC software configuration for digital image correlation systems and full-field deformation measurements.
- Quick set-up and measurement
- Full Alpha DIC software for 2D or 3D real-time measurements
- Large scope of engineering tools for deformation analysis
- Postprocessing and custom functionality programming
EDU Kit
Complete Alpha DIC software package designed for education and classroom training.
Available for academic users owning any commercial or academic X-Sight product.
- For educational use only
- 20 Perpetual Network Licenses
- Full Commercial Software Functionality
- Ongoing Software Enhancements & Support
Application examples
Material testing
Product testing
Biomechanics
and many others…
APPLICATION REPORTS
Material properties control of 3d printed components
MATERIAL PROPERTIES CONTROL of 3d printed components Defining quality in additive technologies requires consideration of the high variability of material properties,…
The helmet drop test – high speed camera
The helmet drop test – high speed camera During the helmet drop test, it is essential to determine the impact velocity….
HIGH-PRECISION ANALYSIS OF BOOT DOOR MOTION
HIGH-PRECISION ANALYSIS OF BOOT DOOR MOTION To evaluate the kinematic behaviour, oscillations and deformation of the car boot mechanism during the…
Determining Forming limit curves using DIC
Determining Forming limit curves using DIC KEYWORDS Nakajima Test Digital Image Correlation Forming limit curve (FLC) Forming limit diagram (FLD) ČSN EN ISO 12004-2 TEST SET-UP X-Sight 3D DIC M5 STANDARD Hydraulic…
BIOMECHANICS: UNIAXIALTENSILE TEST OF TENDON
BIOMECHANICS: UNIAXIAL TENSILE TEST OF TENDON KEYWORDS Biomechanics Low-cycle test Tensile test Constitutive material model Tendon TEST SET-UP X-Sight-2105 extensometer Pig tendon specimen Alpha DIC® modules: AX, DIC Measuring tools: DIC…
Analysis of Spruce wood Deformation During Compression Testing
Analysis of Spruce wood Deformation During Compression Testing KEYWORDS Compression test Spruce wood video extensometer wooden fibre TEST SET-UP 4105-3D extensometer Universal testing machine ZD-40 Stochastic pattern kit Alpha DIC®…
3D PRINTER HEAT BED DEFORMATION
3D PRINTER HEAT BED DEFORMATION KEYWORDS Thermal deformation Heated glass bed Displacement and strain distribution Temperature gradient effects Borosilicate expansion behavior Related standard: ASTM E1461 TEST SET-UP X-Sight 3D…
UNIAXIAL TENSILE TEST OF POLYMER MATERIAL SPECIMEN
UNIAXIAL TENSILE TEST OF POLYMER MATERIAL SPECIMEN KEYWORDS Plastic specimen testing Tensile test Young’s modulus Stress-strain curve Line strain distribution Standard: ISO 527-1:2019 TEST SET-UP X-Sight-2105 extensometer Alpha DIC® modules:…
STRAIN DISTRIBUTION ON A CURVED BEAM: DIC VS. FEM
STRAIN DISTRIBUTION ON A CURVED BEAM: DIC VS. FEM KEYWORDS Strain measurement Bending load Steel curved beam 2D measurement TEST SET-UP Single 9 MPx camera 60 mm photographic…
STRAIN CONCENTRATION ON A NOTCHED SAMPLE: DIC VS. FEM
STRAIN CONCENTRATION ON A NOTCHED SAMPLE: DIC VS. FEM KEYWORDS 2D measurement Tensile load Notched sample Strain distribution Strain concentration TEST SET-UP Single 9 MPx camera 60 mm photographic…
CONTACT US
If you need assistance or want to try the latest research and development features in Alpha DIC, don’t hesitate to contact us. We’re here to help and involve you in shaping the future of Alpha DIC!
