X-Sight high temperature
OPTICAL EXTENSOMETER
HT
HITEX
HIGH TEMPERATURE MEASUREMENT
- Ideal for high-temperature applications
- Measurement up to 1800°C
- Precise non-contact strain measurement
- Optimized for furnace-based testing
Description
The HT is a professional optical extensometer optimized for high-temperature applications, accurately functioning in environments from ambient up to 1800°C.
It utilizes the user-friendly Alpha DIC software, enhancing ease of use for both experiments and data acquisition. Ideal for elevated temperature materials testing, the HT also excels in any scenario requiring precise, accurate measurements over a small field of view, including but not limited to furnace-based applications.
Specification
TECHNICAL DATA
| HT | |
|---|---|
| RESOLUTION | 5 MPx |
| FPS AT FULL RESOLUTION | 75 Hz |
| MEASUREMENT LENGTH | 47 mm |
| LIGHT | Auto-switching monochromatic light |
| WORKING DISTANCE | 262 mm ± 1% |
| DIMENSIONS | 253 × 136 × 71 mm |
| LENS TYPE | Telecentric |
| INTERFACE | USB 3.0 |
| WEIGHT | 1.7 kg |
- Field of View: 47 × 41 mm
- Resolution ISO 9513: Class 0.5
- ASTME 83: Class A (GL > 15 mm)
- Gauge Length: Selectable single or multiple gauge lengths
- Sampling Rate: 75–200 Hz
- Axial and radial neck detection
Documents & download
Optional Accessories
AirLock optical tunnel /furnace tunnel
“Seals the gap between system and furnace to minimize turbulence”

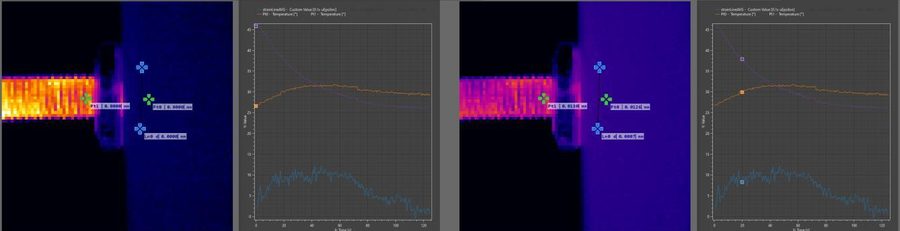

Hot-air turbulence occurs when temperature gradients between the furnace and ambient air create convective flow; the resulting density and refractive-index fluctuations distort the optical path, causing image waviness and apparent motion which is measured as fake strain. In high-temperature measurements this increases noise, reduces correlation quality, and lowers accuracy and repeatability—especially close to the furnace opening. Our AirLock tunnel forms a controlled air corridor between the system and the furnace, suppressing convection, thus minimizing heat shimmer and stabilizing the image for cleaner, more reliable data.

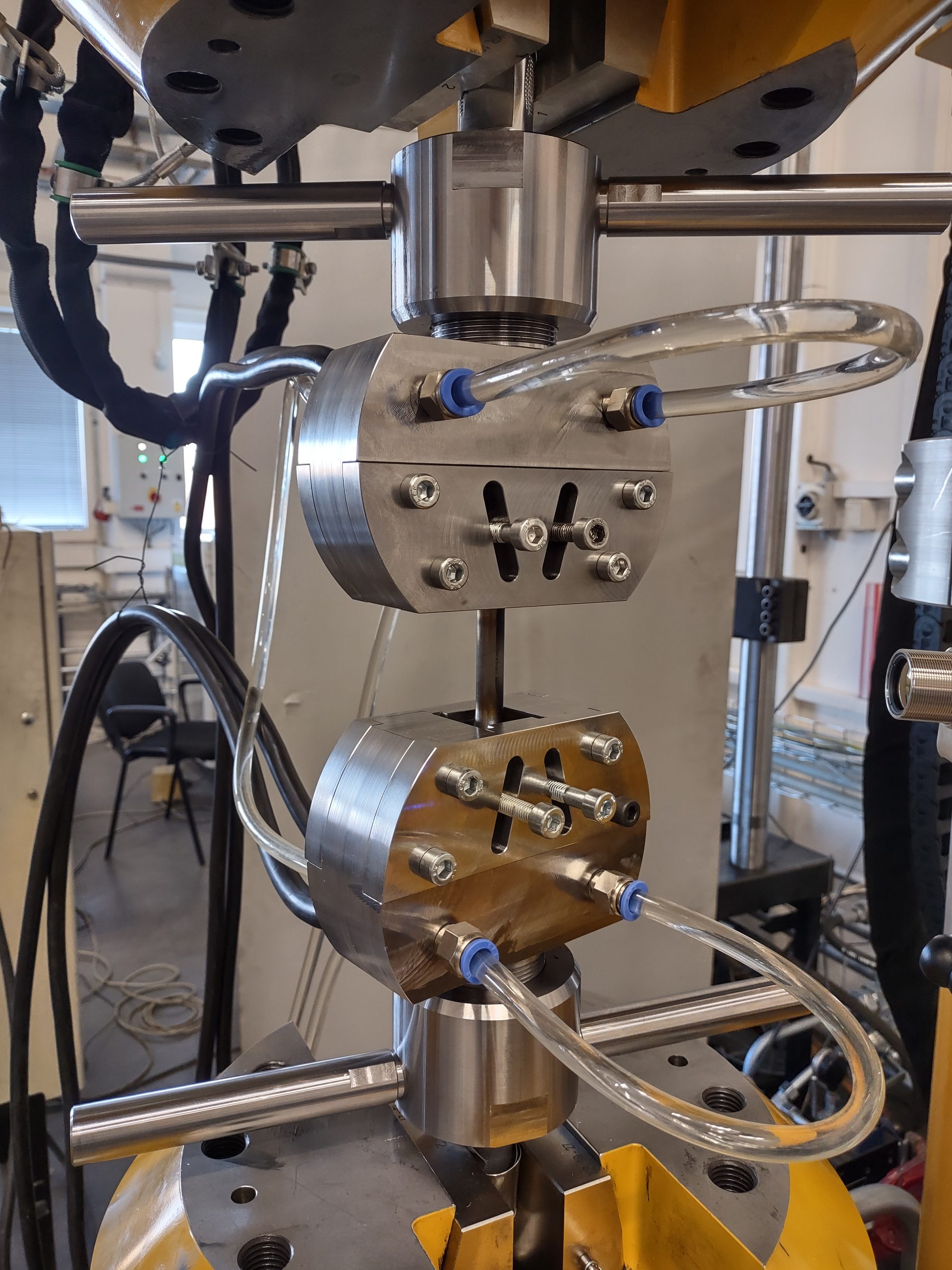

THERMO-MECHANICAL FATIGUE TESTING
- Ideal for Thermo-Mechanical Fatigue (TMF) experiments
- Low Cycle Fatigue (LCF) testing
- Measurement up to 1800°C
- Precise non-contact strain measurement
Description

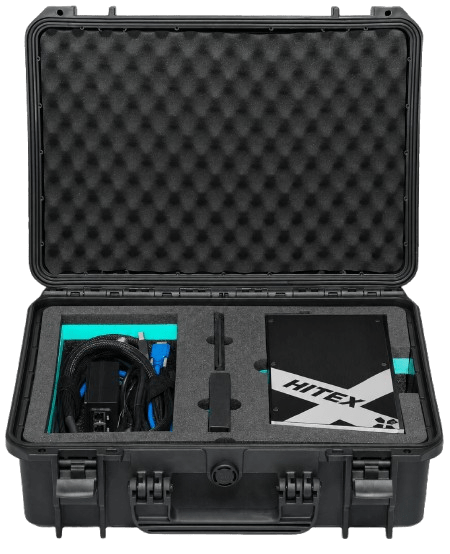

The HITEX is a professional optical extensometer optimized for high-temperature fatigue testing, accurately operating in environments from ambient temperatures up to 1800°C.
It is particularly suited for Thermo-Mechanical Fatigue (TMF) and Low Cycle Fatigue (LCF) testing, enabling precise, non-contact strain measurement under cyclic loading. Together with the user-friendly Alpha DIC software, HITEX provides reliable measurement and evaluation of axial, torsional and combined deformation, making it ideal for demanding material testing at elevated and changing temperatures.
Specification
TECHNICAL DATA
| HITEX | |
|---|---|
| RESOLUTION | 1.3 MPx |
| FPS AT FULL RESOLUTION | 170 Hz |
| MEASUREMENT LENGTH | 45 mm |
| LIGHT | laser |
| WORKING DISTANCE | 125 ± 1% |
| DIMENSIONS | 253 × 136 × 71 mm |
| LENS TYPE | Telecentric |
| INTERFACE | USB 3.0 |
| WEIGHT | 1.7 kg |
Documents & download
APPLICATION REPORTS

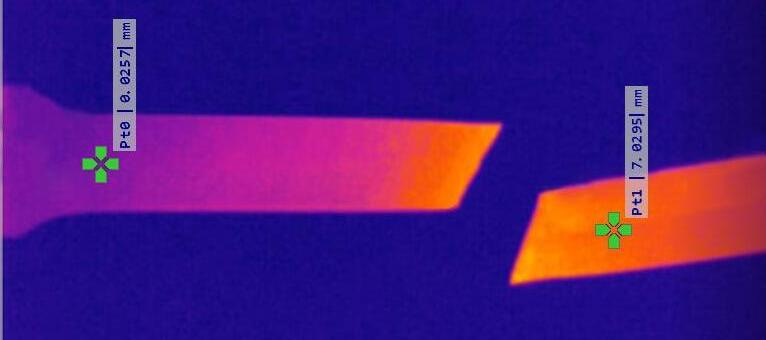

High-temperature uniaxial tensile cyclic test of steel
High-temperature uniaxial tensile cyclic test of steel KEYWORDS High-temperature test Cyclic test Tensile test Furnace TEST SET-UP HT extensometer Alpha DIC® modules: AX, DIC, PP Measurement probes: DIC Area Line…
