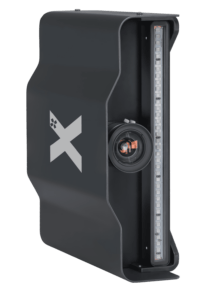

X-Sight 2000 series
Universal Optical Extensometer
- All-in-one box extensometer
- Ideal for general tensile tests
- For up to 300 mm measuring area
- Stackable for joined fields of view
Description
X-Sight 2000 Series optical extensometers demonstrate state-of-the-art digital correlation technology. All X-Sight measuring systems deliver accurate and precise strain measurement readings.
Ease-of-use and numerous industry-leading software features make the X-Sight 2000 Series OE (optical extensometer) an excellent choice for many applications, including tensile, compressive, bending, shear, torsional, and fatigue testing. All this on a wide range of test frames, from small-scale single-column machines to the largest, four-column UTMs.
Specification
X-SIGHT 2000 TECHNICAL DATA
| X-Sight-2101 | X-Sight-2102 | X-Sight-2105 | X-Sight-2106 (ASTM)*** | X-Sight-2109 | X-Sight-2116 | |
|---|---|---|---|---|---|---|
| RESOLUTION | 1.3 MPx | 2.3 MPx | 5 MPx | 6 Mpx | 8.9 MPx | 16.1 MPx |
| SAMPLING RATE AT FULL VIEW | 170 Hz | 42 Hz | 75 Hz | 60 Hz | 32 Hz | 23 Hz |
| TYPICAL SAMPLING RATE | 200 Hz | 90 Hz | 175 Hz | 200 Hz | 75 Hz | 70 Hz |
| MEASUREMENT LENGTH CLASS 0.5* | 80 mm | 110 mm | 130 mm | – | 220 mm | 330 mm** |
| MEASUREMENT LENGTH CLASS 1* | 160 mm | 190 mm | 260 mm | – | 440 mm** | 660 mm** |
| MEASUREMENT LENGTH CLASS 2* | 320 mm** | 380 mm** | 520 mm** | – | 880 mm** | 1320 mm** |
| INTERFACE | USB 3.0 | |||||
| DIMENSIONS | 221 × 187 × 80 mm | |||||
| WEIGHT | 1.4 kg | |||||
| LENSMOUNT | C | |||||
| LIGHT | L200 Blue LED light | |||||
*compliant to ISO 9513
**Large FOV: built-in LED may be insufficient – consider X-Sight 4000 OE or additional lighting
*** ASTM focused OE
- Compliance with ISO 9513 and ASTME E83
- Compliance with ISO 6892-1 and ASTM E8 in the strain rate control mode
- Usable with most ISO and ASTM for determination of tensile properties for metallic materials, plastics, elastomers, composites, concretes, and many more
- Applicable to high-temperature and climate chamber measurements
- Simple to use with operator mode
- Axial and radial neck detection and many more features
- Easily implementable into the automatic lines
- Wide range of measuring tools for advanced deformation analyses
Documents & download
Extensometer modes
X-Sight 2000 Series extensometer MODES
The X-Sight 2000 Series Extensometer is distinguished by its versatile operational modes, accommodating a broad spectrum of measurement needs in material testing. It allows users to combine multiple units, significantly broadening the field of view.
- Single Mode: The most common setup. Multiple single cameras can be used simultaneously.
- Joined Mode: Incorporates identical Fields of View (FoV), enabling smooth movement of a point across cameras. For specimens that are longer or exhibit significant elongation, we recommend our 4000 series extensometer.
- Dual FoV Mode: An uncommon setup characterized by varying resolutions.
- Separated FoV Mode: This mode is designed for long specimens with relatively small extensions or deformations.
Testing according to ASTM?
X-Sight 2106 – ASTM focused Video Extensometer
The X-Sight-2106 (ASTM) is a cost-effective video extensometer tailored for ASTM testing. It features a 6MPx camera and, unlike other 2000 series models, omits the relay, making it more affordable. The compact design allows for easy mounting on a testing machine or tripod, and it includes an interchangeable lens for versatility in different testing scenarios.
Application examples
APPLICATION REPORTS
BIOMECHANICS: UNIAXIALTENSILE TEST OF TENDON
BIOMECHANICS: UNIAXIAL TENSILE TEST OF TENDON KEYWORDS Biomechanics Low-cycle test Tensile test Constitutive material model Tendon TEST SET-UP X-Sight-2105 extensometer Pig tendon specimen Alpha DIC® modules: AX, DIC Measuring tools: DIC…
UNIAXIAL TENSILE TEST OF POLYMER MATERIAL SPECIMEN
UNIAXIAL TENSILE TEST OF POLYMER MATERIAL SPECIMEN KEYWORDS Plastic specimen testing Tensile test Young’s modulus Stress-strain curve Line strain distribution Standard: ISO 527-1:2019 TEST SET-UP X-Sight-2105 extensometer Alpha DIC® modules:…
TRANSVERSAL MEASUREMENT OF POLYMER MATERIAL SPECIMEN
TRANSVERSAL MEASUREMENT OF POLYMER MATERIAL SPECIMEN KEYWORDS Plastic specimen testing Tensile test Transversal Strain Stress-strain curve Line strain distribution Standard: ISO 527-1:2019 TEST SET-UP X-Sight-2105 extensometer Alpha DIC® modules: AX,…
