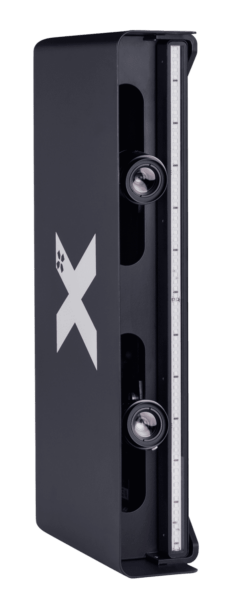

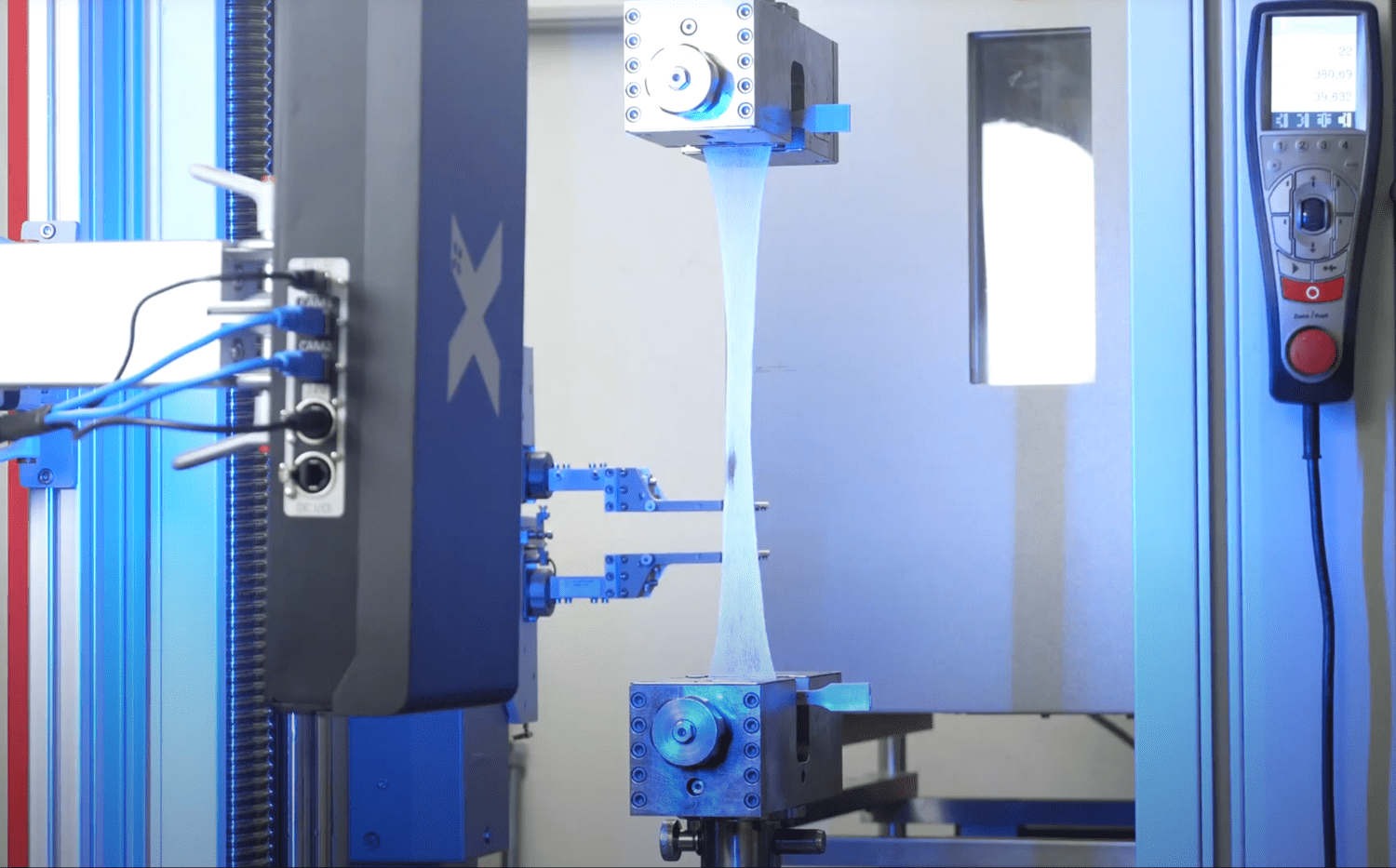

X-Sight 4000-3D

Stereoscopic Optical Extensometer

  • All-in-one box extensometer
  • Ideal for general tensile tests
  • 3D capabilities
  • Resilient to out-of-plane error

Description

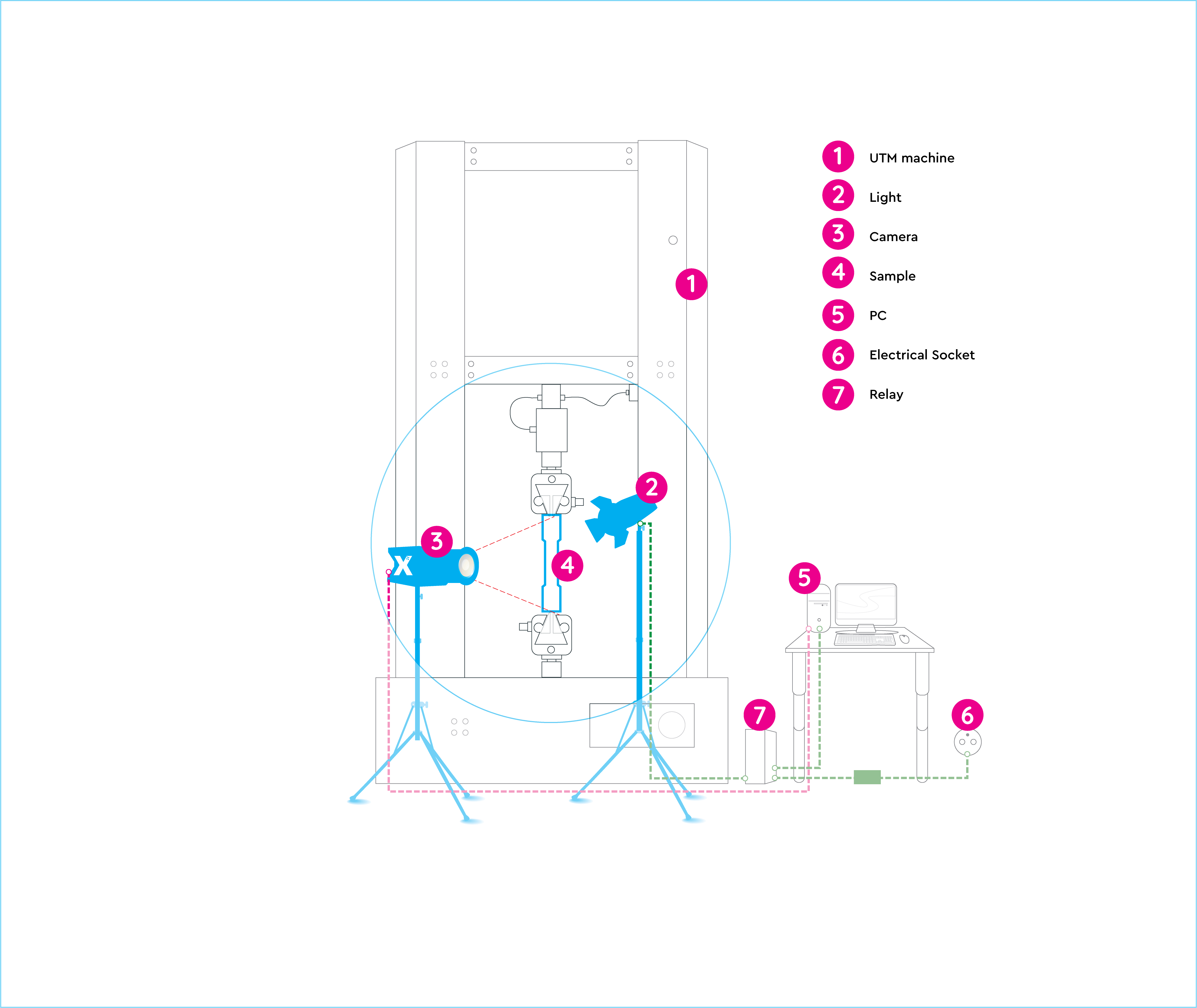

The X-Sight 4000-3D Series is a universal stereoscopic video extensometer (3DVE) equipped with two cameras to capture spatial movements and deformations. Its 3D capability ensures resilience to errors caused by out-of-plane movements, enhancing accuracy.

The 3DVE provides multiple measurements simultaneously, allowing for data collection at different positions or with various gauge lengths. It measures strain, total length, delta length, angle, and more, making it ideal for comprehensive material testing, sophisticated research and quality control that requires 3D data analysis.

X-Sight 4000-3D | Stereoscopic Extensometer for 3D Deformation Measurement
X-Sight 4000-3D Planar Mode | Markerless Strain Measurement on Natural & Reflective Surfaces

Specification

X-SIGHT 4000-3D TECHNICAL DATA

X-Sight-4105-3DX-Sight-4109-3D
RESOLUTION2 × 5 MPx2 × 8.9 MPx
FPS AT FULL RESOLUTION75 Hz32 Hz
MEASUREMENT LENGTH
CLASS 0.5*		120 mm220 mm
MEASUREMENT LENGTH
CLASS 1*		220 mm440 mm
INTERFACEUSB 3.0
LIGHTL400
LENSMOUNTC

*compliant to ISO 9513

Documents & download

DATASHEETS

4000-3D stereoscopic extensometer datasheetDownload
Alpha DIC software datasheetDownload

APPLICATION REPORTS

Analysis of Spruce wood Deformation During
Compression TestingDownload

When to Use X-Sight 4000-3D?

Whenever we deal with very thin samples or weaker grips that may cause the specimen to bend and move out of plane
During compression tests, the middle of the sample may bulge outward and move out of plane (barreling)
If the sample bends or twists and move out of plane during compression (buckling).
When the sample is already curved at the start of the test
When measuring points in different planes, e.g., on a rebar coupler
During component testing of generally 3D objects

Why extensometer 3D?

  • Prevention of measurement distortion due to out-of-plane displacement, which is not prevented by the test rig sufficiently
  • Accurate measurement and determination of Poisson’s ratio of thin samples susceptible to tilting (composites, metal sheets, fabrics)
  • Control of 3D movement of measured samples and adjacent parts (sample clamping system, test rig frame, etc.)
  • Identification of sample cracking, bending or buckling
  • Identification of non-symmetric thermal expansion deformations
  • Identification and validation of actual sample deformations in 3D
  • Test rig sample loading issues, test rig set-up, test rig adjustment
