X-SIGHT 2D DIC System
X-SIGHT 3D DIC System
VERIFY AND ENHANCE YOUR NUMERICAL MODELS
- Verify CAE model predictions
- Validate your FEM results
- Control your experiment and test set-up performance
- Assess the mechanical deformations of prototypes, components, and samples
ALL OUR DEVICES ARE POWERED BY OUR VERSATILE DIGITAL IMAGE CORRELATION SOFTWARE

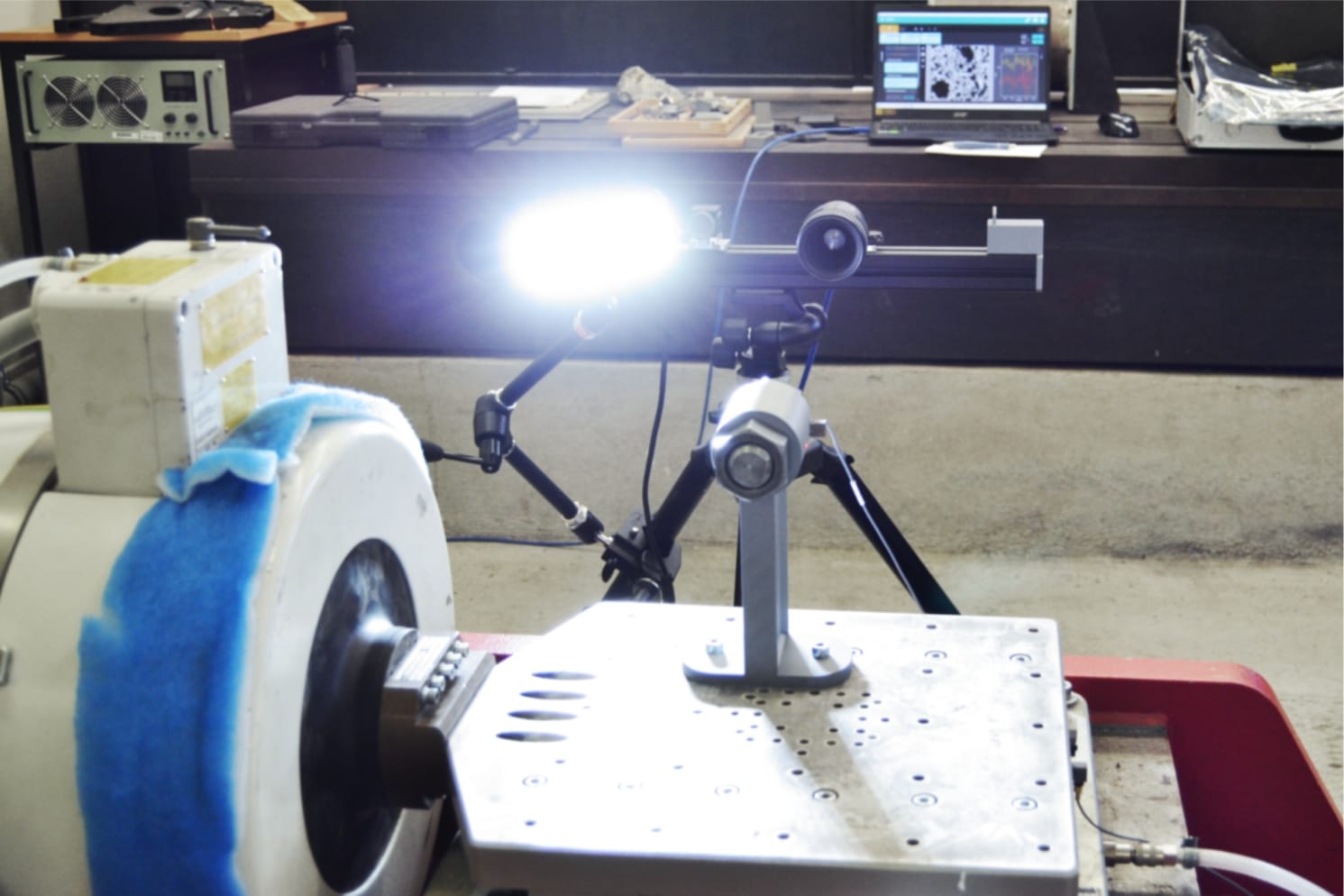

The Alpha DIC software is an industry-recognized instrument for optical measurement and analysis of deformation, vibration, and strain of virtually any material or structure.
- Alpha follows a modular approach offering optimized ergonomy for advanced research and routine measurement

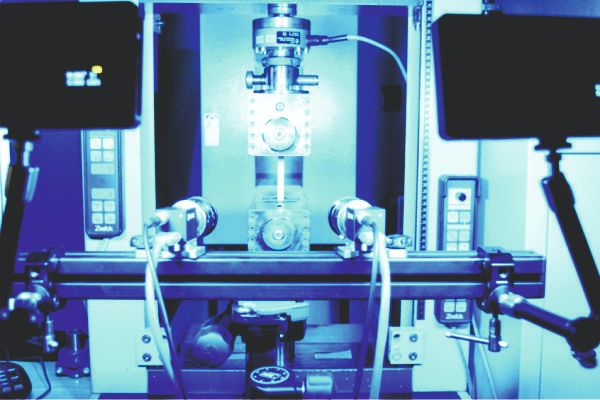

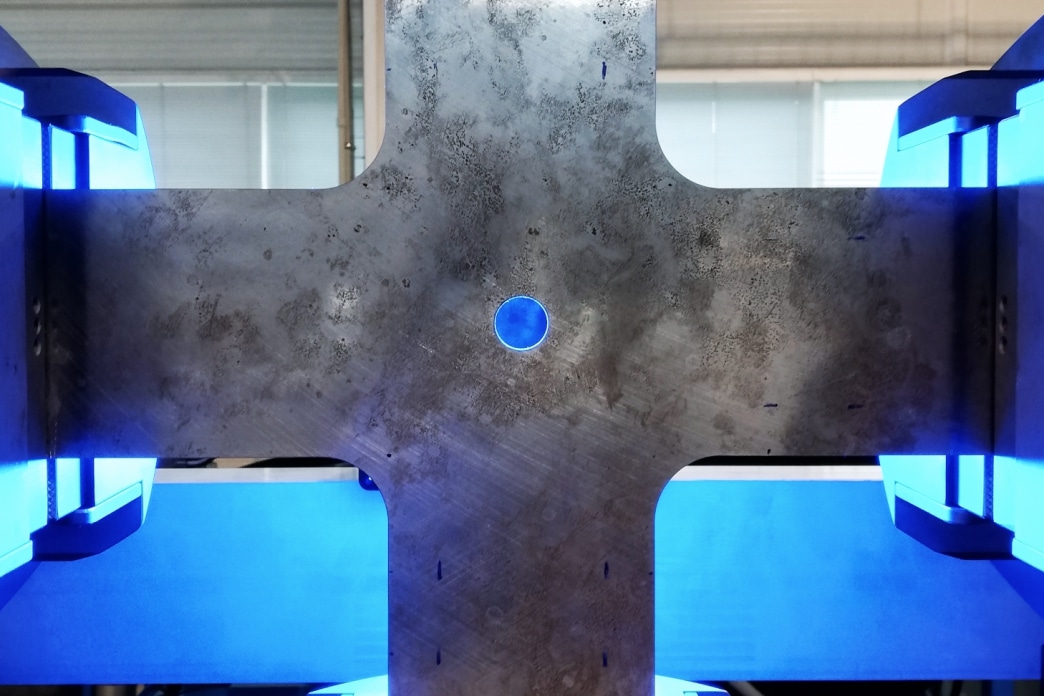

- Alpha has a wide palette of engineering testing options and software tools for any type of testing (tensile, compression, torsion, shear, flexural)
- Alpha DIC is founded upon the digital image correlation measuring technique and offers cutting-edge machine vision technology with specialized features
DIGITAL IMAGE CORRELATION FOR EXPERIMENTAL INVESTIGATIONS
- Measure and qualify what is beyond the visual perception of your eyes

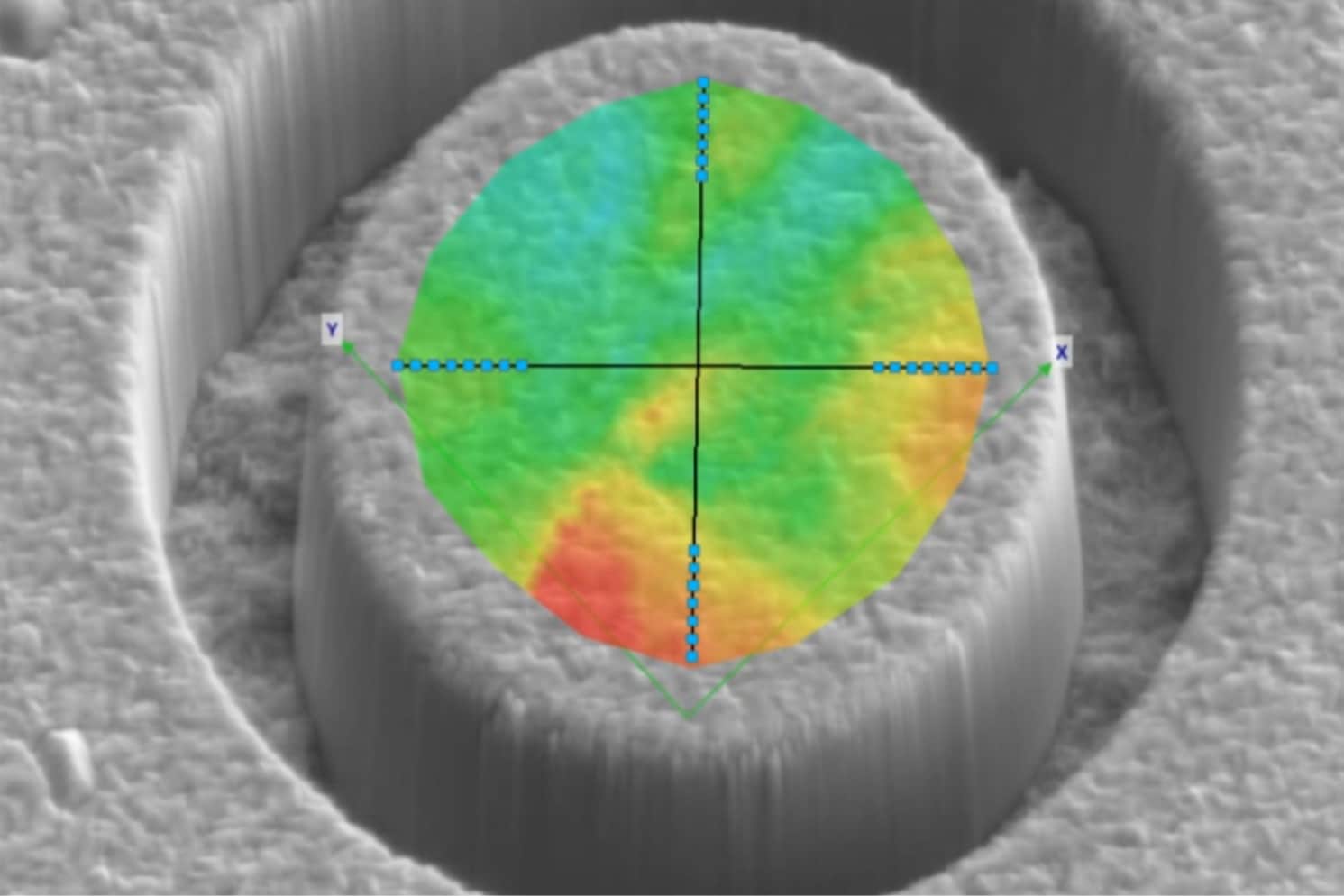

- From microchips to bridges – measure micro-scale samples or macro-scale structures with micrometer resolution and precision
- Comprehensive 2D and 3D measurement of planar and non-planar specimen

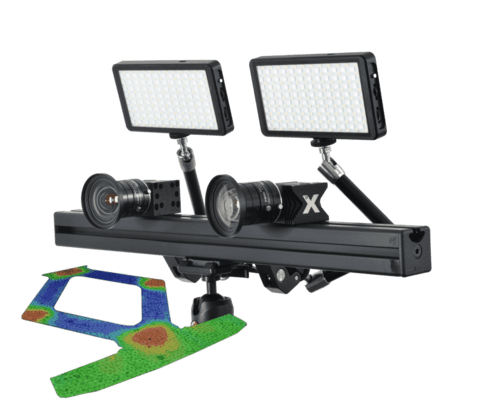

X-SIGHT 3D DIC SYSTEM

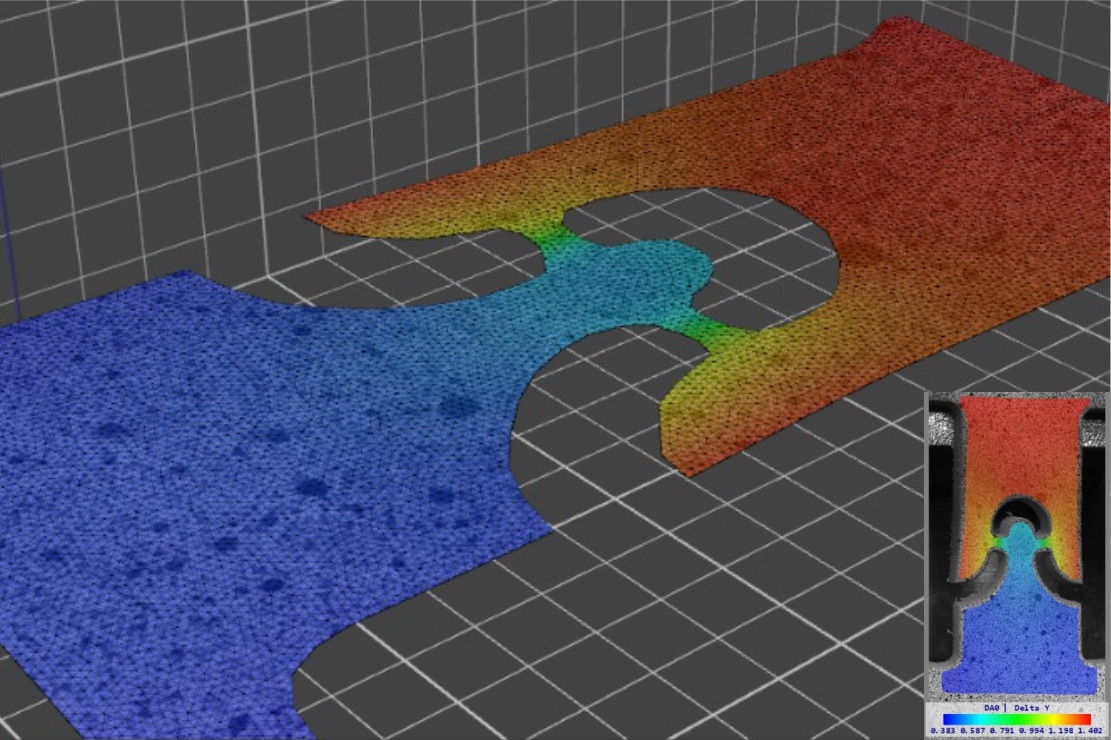

X-Sight 3D is a variable-focus stereoscopic DIC optical measuring system. A universal, complex, and easy-to-operate DIC system for sophisticated and varied stereoscopic strain analysis.

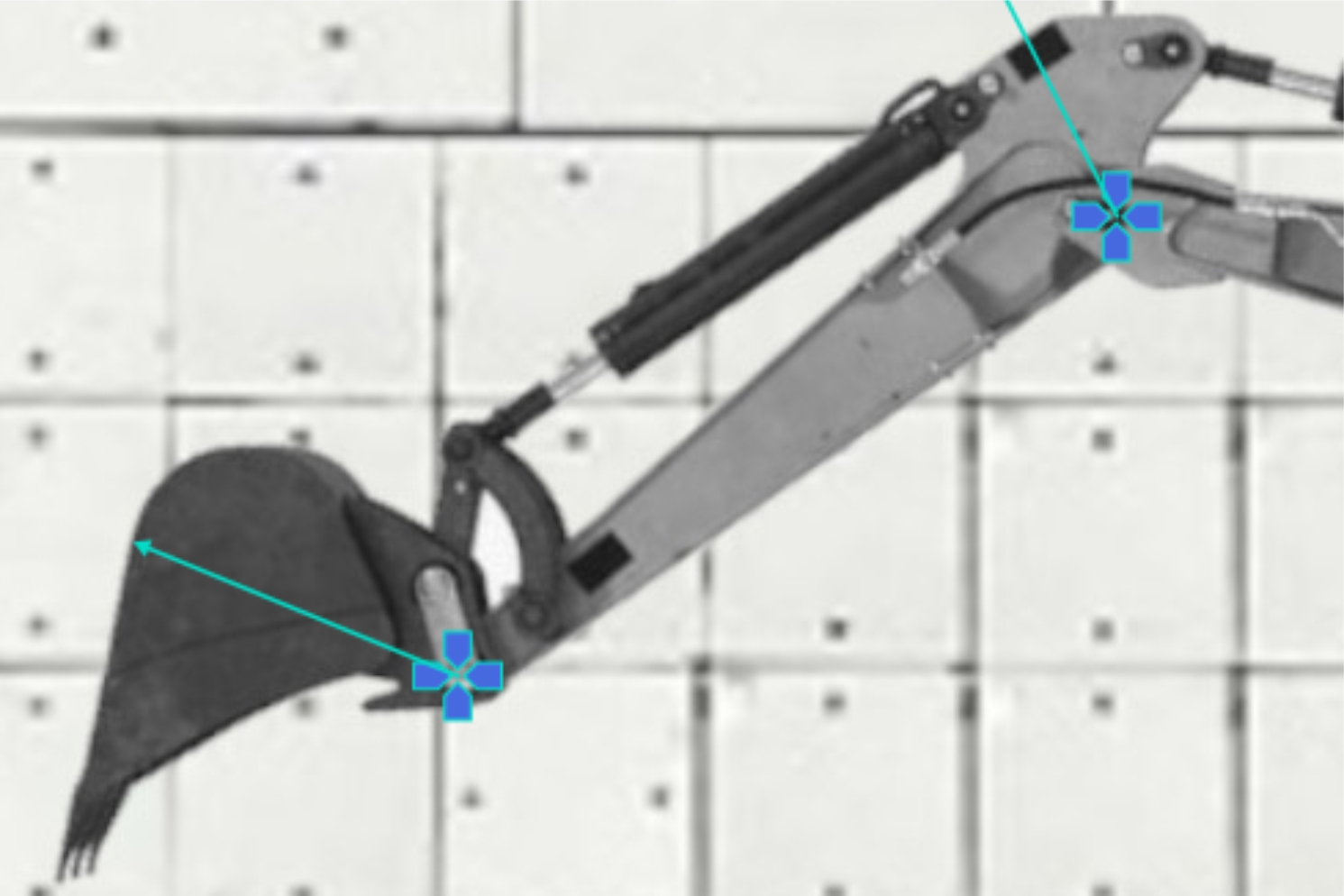

X-Sight 3D is an adaptable system that fits any experiment involving out-of-plane deformations and motion measurements.
This system comes with the complete DIC software functionality and contains all software modules.
X-SIGHT 3D DIC TECHNICAL DETAILS
| M5 | M12 | M24 | |
|---|---|---|---|
| RESOLUTION | 5 MPx (2448 × 2048 Px) | 12.3 MPx (4096 × 3000 Px) | 24.5 MPx (5320 × 4600 Px) |
| FRAMERATE | 75 FPS at full res > 120 FPS at 2.5 MPx > 300 FPS at 1 MPx max 1k FPS at 2448 × 128 Px | 23 FPS at full res > 40 FPS at 6 MPx > 300 FPS at 1 MPx max 1k FPS at 4096 × 128 Px | 12 FPS at full res > 20 FPS at 12 MPx > 50 FPS at 6 MPx > 300 FPS at 1 MPx max 1 kFPS at 5320 × 96 Px |
| STRAIN RESOLUTION | 50 µε | 50 µε | 50 µε |
| SPECIMEN SIZE | 1 mm – 100 m | 1 mm – 100 m | 10 mm – 100 m |
| DATASHEETS | X-Sight 3D-M5 | X-Sight 3D-M12 | X-Sight 3D-M24 |

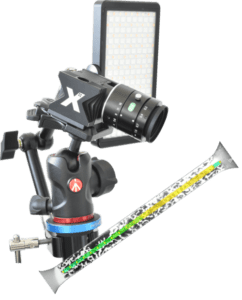

X-SIGHT 2D DIC SYSTEM
The X-Sight 2D DIC is a straightforward and versatile single- or multi-camera measuring device suitable for experimental validation of your designs, calculations, numerical simulations.
X-Sight 2D is ideal for assessing various mechanical characteristics of your machines, assemblies, and structures.
This system comes with the complete DIC software functionality and contains all available software modules.
X-SIGHT 2D DIC TECHNICAL DETAILS
| M5 | M12 | M24 | |
|---|---|---|---|
| RESOLUTION | 5 MPx (2448 × 2048 Px) | 12.3 MPx (4096 × 3000 Px) | 24.5 MPx (5320 × 4600 Px) |
| FRAMERATE | 75 FPS at full res > 120 FPS at 2.5 MPx > 300 FPS at 1 MPx max 1k FPS at 2448 × 128 Px | 23 FPS at full res > 40 FPS at 6 MPx > 300 FPS at 1 MPx max 1k FPS at 4096 × 128 Px | 12 FPS at full res > 20 FPS at 12 MPx > 50 FPS at 6 MPx > 300 FPS at 1 MPx max 1 kFPS at 5320 × 96 Px |
| STRAIN RESOLUTION | 50 µε | 50 µε | 50 µε |
| SPECIMEN SIZE | 1 mm – 100 m | 1 mm – 100 m | 10 mm – 100 m |
| DATASHEETS | X-Sight 2D-M5 | X-Sight 2D-M12 | X-Sight 2D-M24 |
WHY 3D OPTICAL EXTENSOMETER?
- Prevention of measurement distortion due to out-of-plane displacement, which is not prevented by the test rig sufficiently
- Accurate measurement and determination of Poisson’s ratio of thin samples susceptible to tilting (composites, metal sheets, fabrics)
- Control of 3D movement of measured samples and adjacent parts (sample clamping system, test rig frame, etc.)
- Identification of sample cracking, bending or buckling
- Identification of non-symmetric thermal expansion deformations
- Identification and validation of actual sample deformations in 3D
- Test rig sample loading issues, test rig set-up, test rig adjustment
