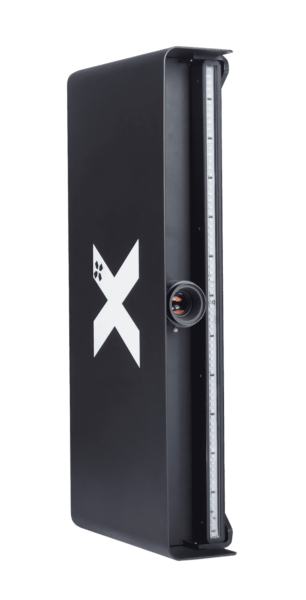

X-Sight 4000 series
Universal Optical Extensometer – Built for Larger Specimens
- All-in-one box extensometer
- Ideal for general tensile tests
- For up to 500 mm measuring area
- Stackable for joined fields of view
Description
The X-Sight 4000 series optical extensometers (OE) offers streamlined efficiency with its single camera setup, perfect for standard tests like tensile, compression, and flexural tests.
The X-Sight 4000 series provides a larger illuminated area than X-Sight 2000 series. This makes it a better choice for longer or high-elongating specimens.
Specification
X-SIGHT 4000 TECHNICAL DATA
| X-Sight-4101 | X-Sight-4102 | X-Sight-4105 | X-Sight-4106*** | X-Sight-4109 | X-Sight-4116 | |
|---|---|---|---|---|---|---|
| RESOLUTION | 1.3 MPx | 2.3 MPx | 5 MPx | 6MPx | 8.9 MPx | 16.1 MPx |
| SAMPLING RATE AT FULL VIEW | 170 Hz | 43 Hz | 75 Hz | 60 Hz | 32 Hz | 23 Hz |
| TYPICAL SAMPLING RATE | 200 Hz | 90 Hz | 175 Hz | 200 Hz | 75 Hz | 70 Hz |
| MEASUREMENT LENGTH CLASS 0.5* | 80 mm** | 110 mm** | 130 mm** | – | 220 mm** | 330 mm |
| MEASUREMENT LENGTH CLASS 1* | 160 mm** | 220 mm** | 260 mm** | – | 440 mm | 660 mm |
| MEASUREMENT LENGTH CLASS 2* | 320 mm | 380 mm | 520 mm | – | 880 mm | 1320 mm |
| INTERFACE | USB 3.0 | |||||
| LIGHT | L400 | |||||
| LENSMOUNT | C | |||||
*compliant to ISO 9513
** Consider X-Sight 2000 series OE as the 400mm led is not necessary
*** ASTM focused OE
Documents & download
Testing according to ASTM?
X-Sight 4106 – ASTM focused Video Extensometer
The X-Sight-4106 (ASTM) is a cost-effective video extensometer tailored for ASTM testing. It features a 6MPx camera and, unlike other 4000 series models, omits the relay, making it more affordable. The compact design allows for easy mounting on a testing machine or tripod, and it includes an interchangeable lens for versatility in different testing scenarios.
