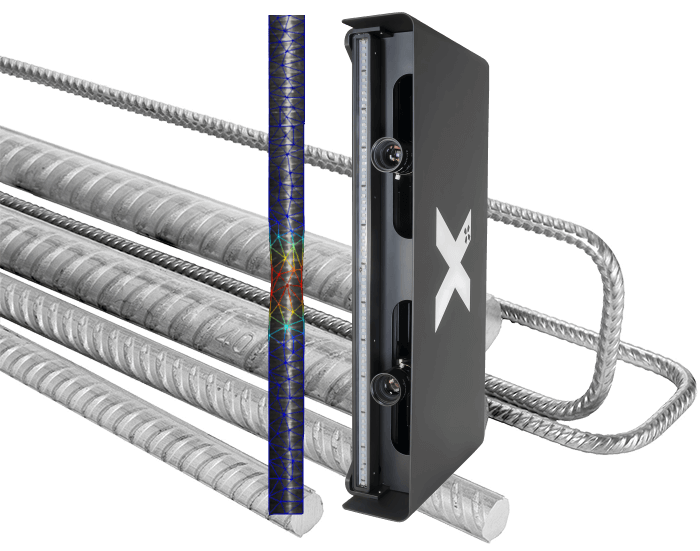

ONE-ROD Optical Extensometer

ONE-ROD is an easy-to-use optical extensometer optimized for tensile testing of reinforcing steel.

The unique ITT functionality of X-Sight’s DIC software allows for the measurement of specimens with an oxide or rust layer falling off significantly, which causes standard optical extensometers to become ineffective.

The ONE-ROD measuring system aims to be as simple and precise as possible concerning minimum requirements for specimen preparation and calibration.

DATA SHEET

Optical extensometer ONE-ROD

ONE-ROD TECHNICAL DATA

  • 2 × 2.3 MPx industrial cameras
  • Lighting: 500 mm LED light
  • Field of view: 550 × 100 mm
  • Sampling rate: > 40 Hz
  • USB relay for light control
  • Weight: approx. 3.5 kg
  • Dimensions: 420 × 187 × 79 mm
  • Power supply: 24 V 1A – 500 mm
  • Fixed working distance (approx. 560 mm)
  • Connection: 2 × USB 3.0; 1 × USB 2.0; RJ45
  • Complies with ISO 9513: Class 1
  • Complies with ASTM E83-10a B1 for L0 > 25 mm

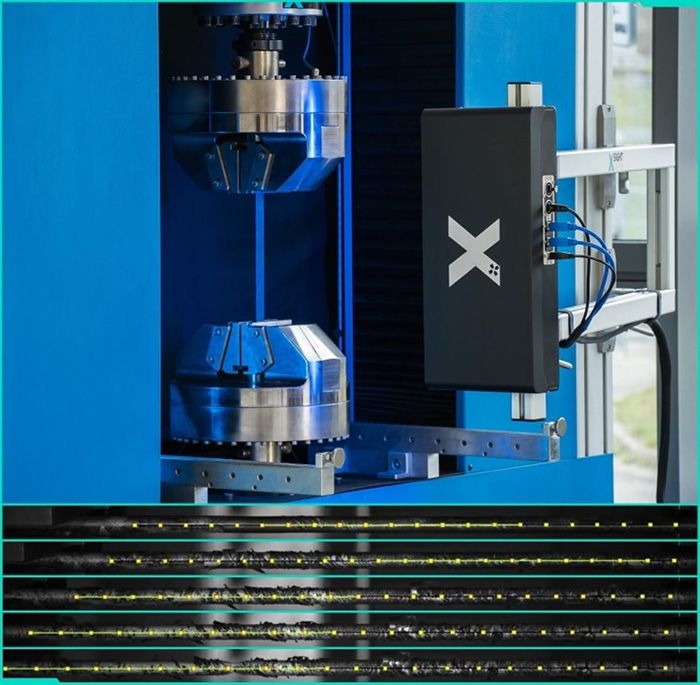

rod rebar tensile test
