DIC solution for bridge deformation measurement
- Complex deformation bridge measurement
- Visualization of deformation
- All-in-One 10 Hz/60 MPx DIC System
- Real-Time thermal compensation evaluation
Description
X-Sight Bridget is a dedicated all-in-one DIC system for the measurement of bridges. Equipped with three synchronized high-resolution cameras, robust hardware, and Alpha DIC® software, it delivers reliable deformation data — both in real-time and in powerful post-processing.
Designed for field use, Bridget combines precision optics with rugged construction, ensuring stable operation even in harsh outdoor conditions. A wide palette of engineering tools enables complex deformation analysis.
With this system, on-site measurements can be performed with full evaluation of thermal deformation effects.
Bridge Measurement Setup

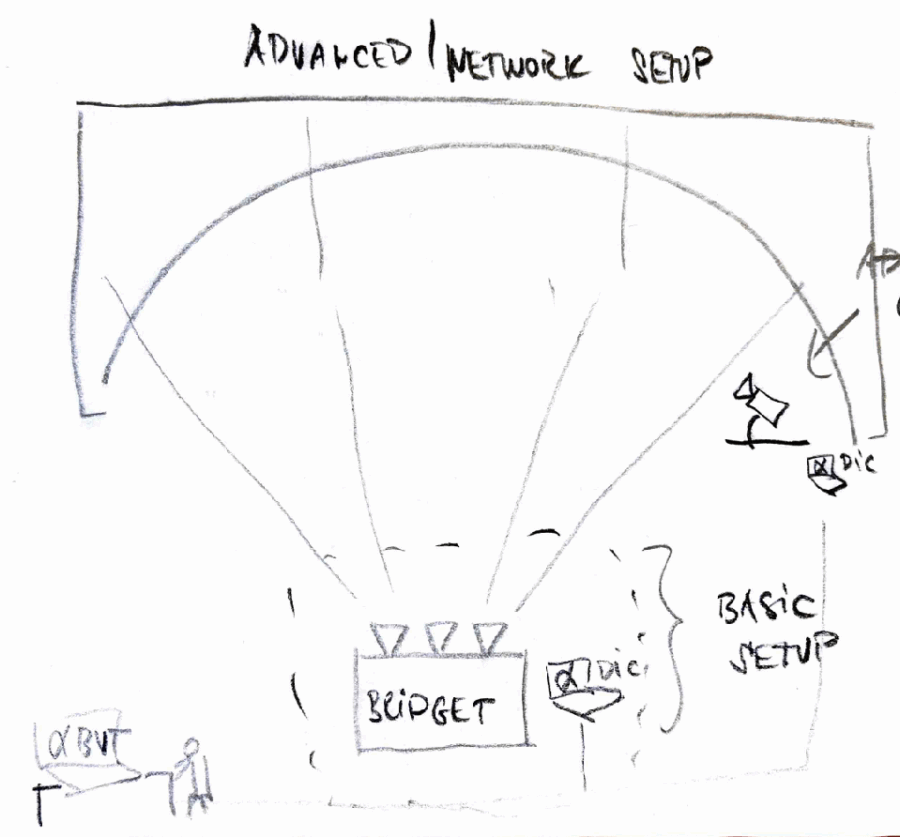

The basic setup consists of the Bridget measuring unit and a PC running Alpha DIC. Bridget can be positioned to capture the entire bridge or only a selected area, depending on the measurement requirements.
The system can be optionally expanded with additional cameras (e.g., under the bridge). Measured data can be analysed during the measurement using the Bridge Visualization Tool, which may run either on the same PC or on a separate workstation that collects and visualises data from all connected cameras.
Specification
TECHNICAL DATA
| BRIDGET | |
|---|---|
| RESOLUTION | 3 × 20 MPx (Total: 60 MPx) |
| FRAMERATE (FULL/HALF) | 5 Hz / 10 Hz |
| MAX FRAME RATE | 22 Hz (at reduced resolution) |
| MEASUREMENT AREA (FOV) | 30 m → 14.5 μm resolution 200 m → 97 μm resolution |
| ALPHA DIC SW TOOLS | Point probe  Anchor point  Line probe  Bend line  LVD  Bridge measuring tool  Bridge Visualization |
- Flexible zoom lenses for wide or narrow bridge spans
- Real-time and post-processed strain analysis
- Compatible with natural or speckle patterns
- Ideal for large-scale structures — up to 200 m
- Tripod and leveling head included for field deployment
- Advanced scripting tools for filtering and custom evaluation
Documents & download
DATASHEETS
Why choose Bridget?
- No complex installation of reflective targets like with geodetic systems
- Simultaneous compensation of thermal effects – faster and simpler deformation analysis
- Continuous measurement instead of discrete geodetic readings
- Measurements during operation – no need to stop traffic or construction
- Real-time evaluation of displacements
- wide palette of engineering tools
- Flexible cabling setup (30 – 100 m, or wireless) for field deployment
